Pipe Hangers

Overview

Pipe hangers hold the weight of pipes and suspend piping runs—all while keeping pipes protected from corrosion or damage. Because they’re often dangling in mid-air, pipe hangers have to withstand the weight of your pipes as well as gravity.

Structural Attachments

Structural Attachments allow pipe to do more than sit on a beam. These attachments and clamps can be welded, bolted or clamped to suit a wide variety of applications. APP offers various styles of attachments in carbon steel, stainless steel and hot-dipped galvanized (HDG).

pipe-hangers-01

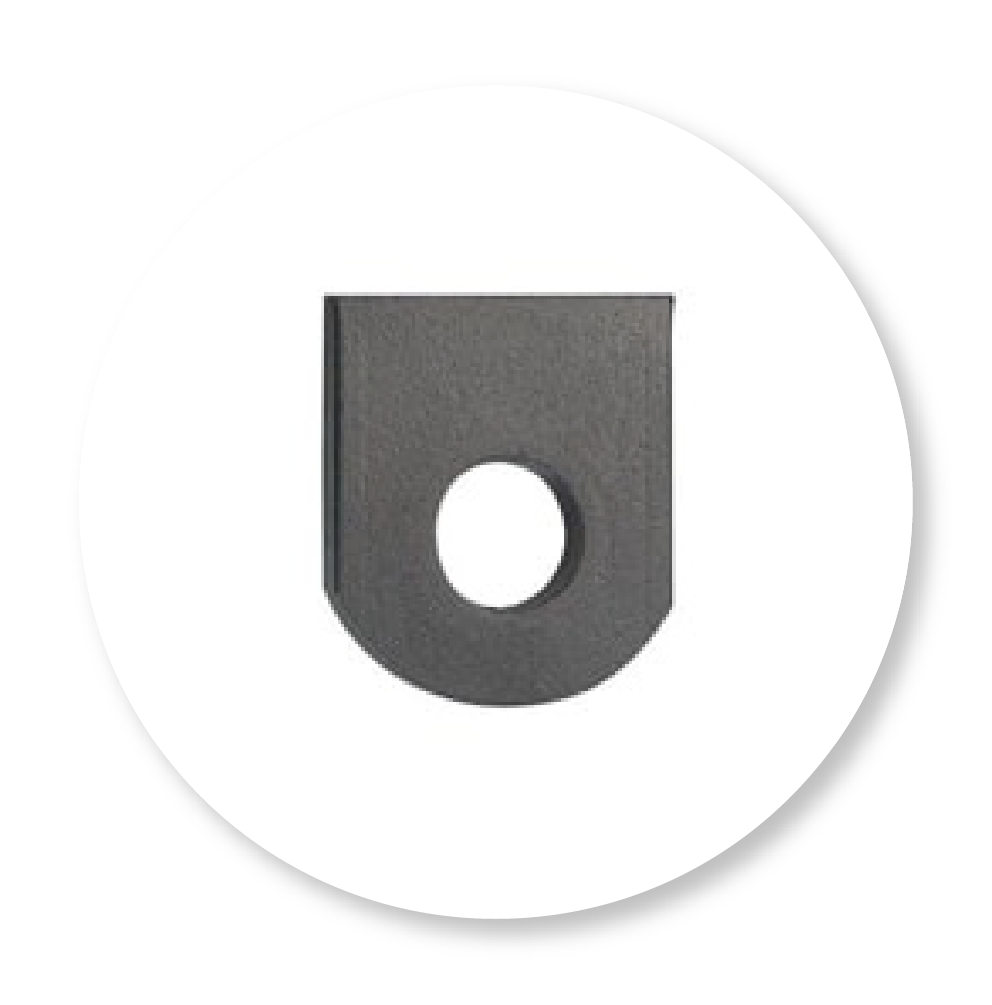

Short Structural Welding Lugs (fig. 55)

Size Range (55): 1/2” – 3-3/4”

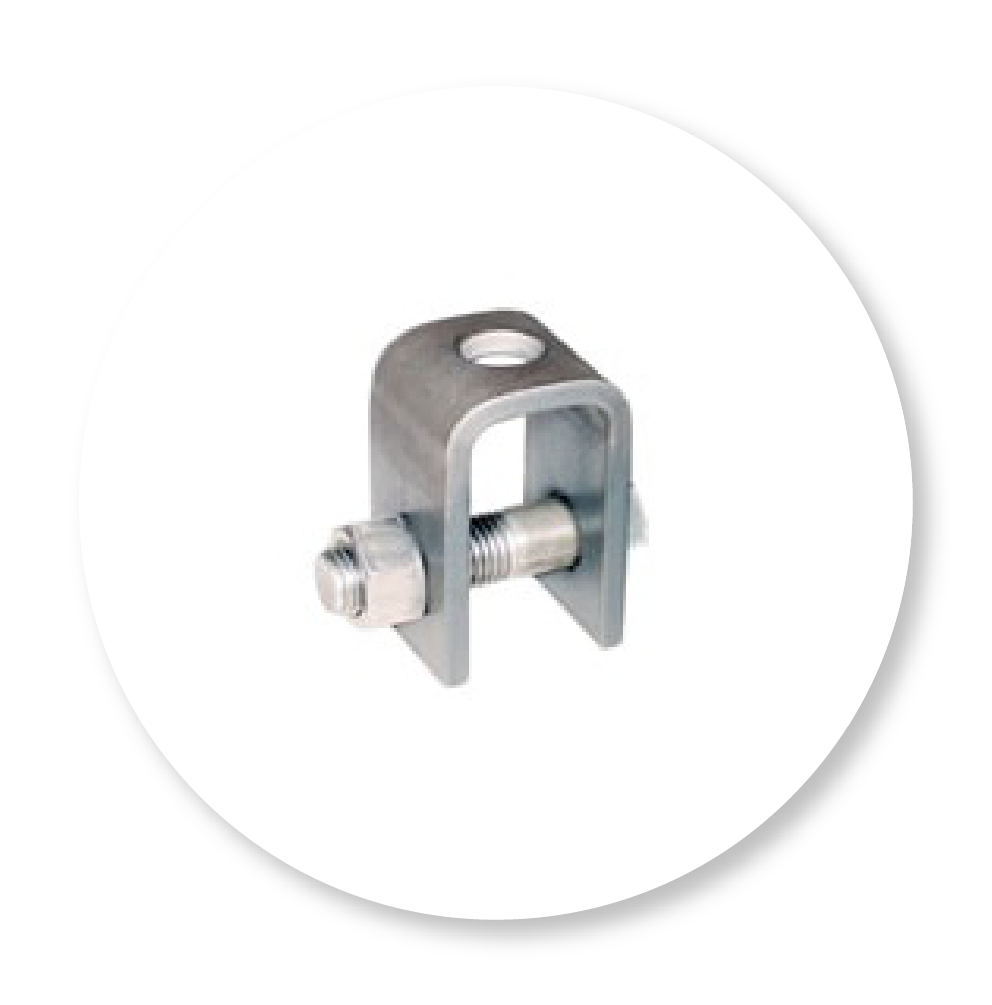

pipe-hangers-09

Welded Beam Attachments (fig. 66)

Size Range: 3/8” – 3-1/2”

Product Drawing
pipe-hangers-08

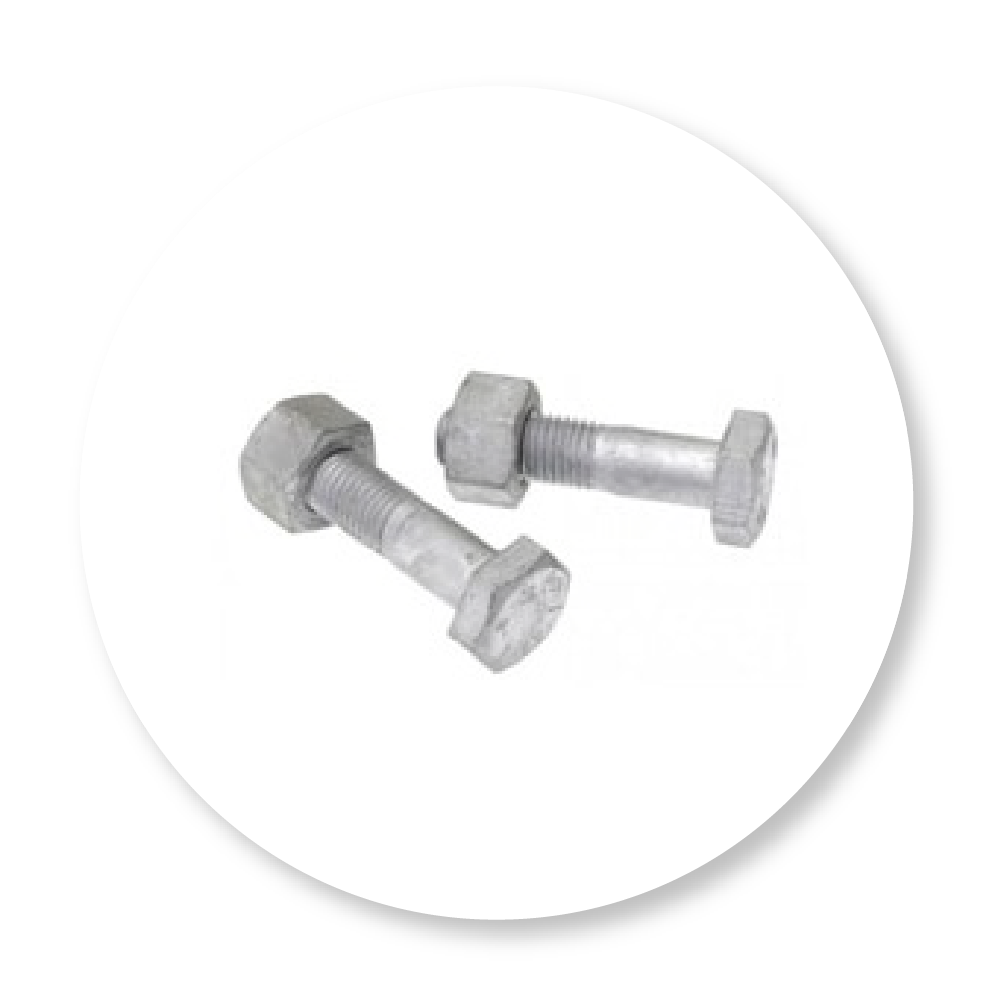

Standard Hex Nuts

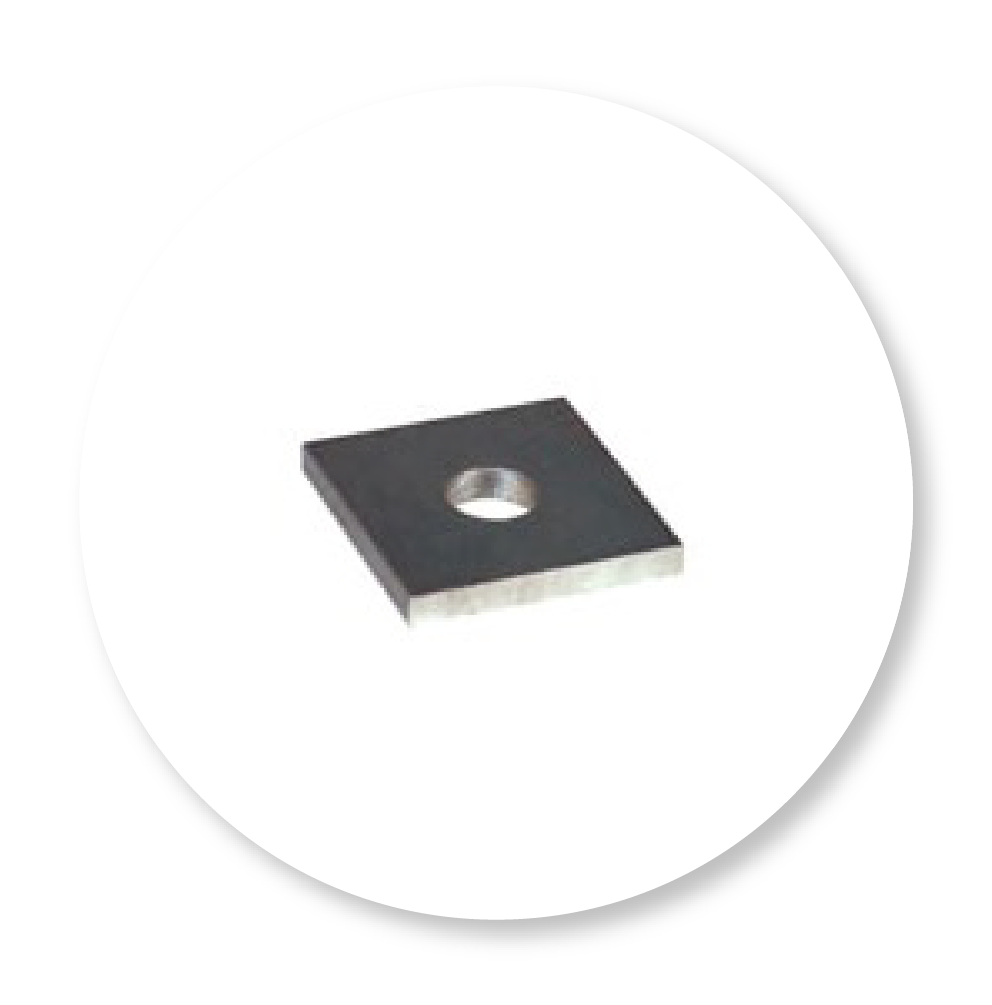

pipe-hangers-07

Steel Washer Plates (fig. 60)

Size Range: 3/8” – 3-3/4”

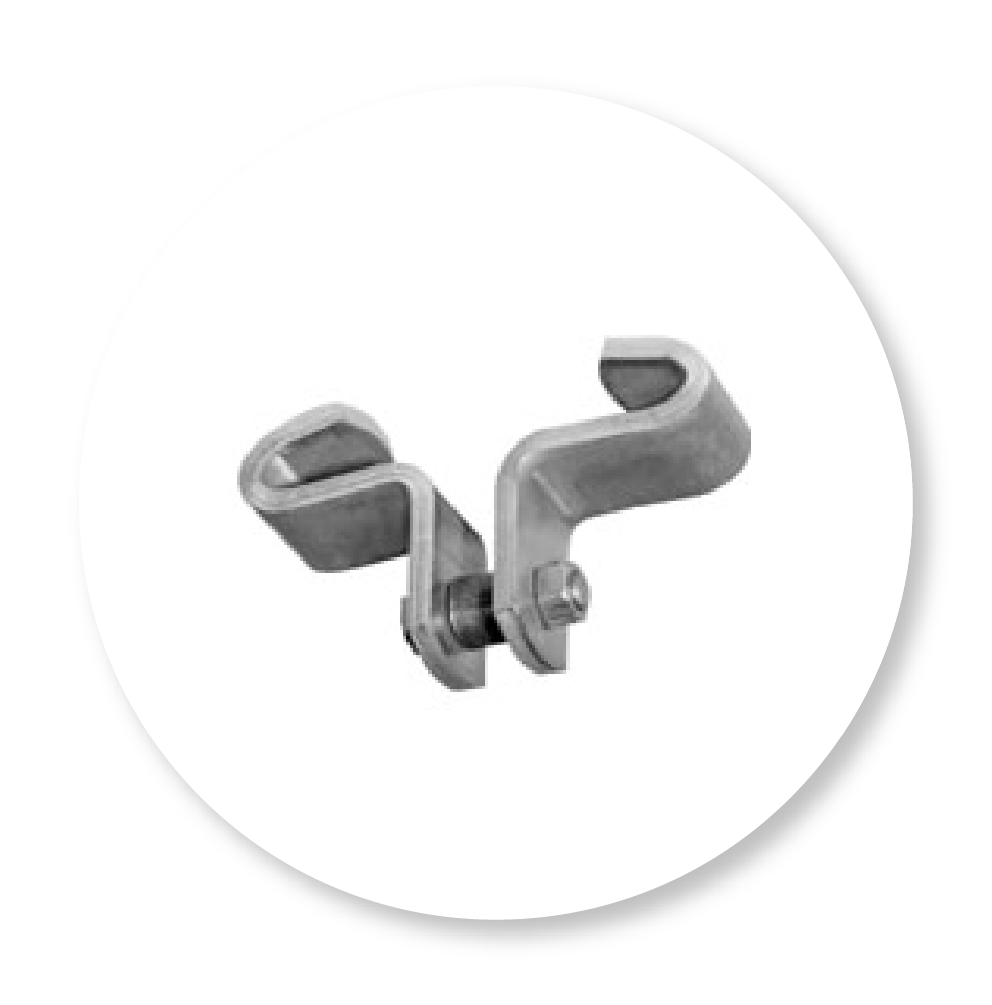

pipe-hangers-06

Standard Duty Beam Clamps (fig. 133)

Size Range: 4” – 12”

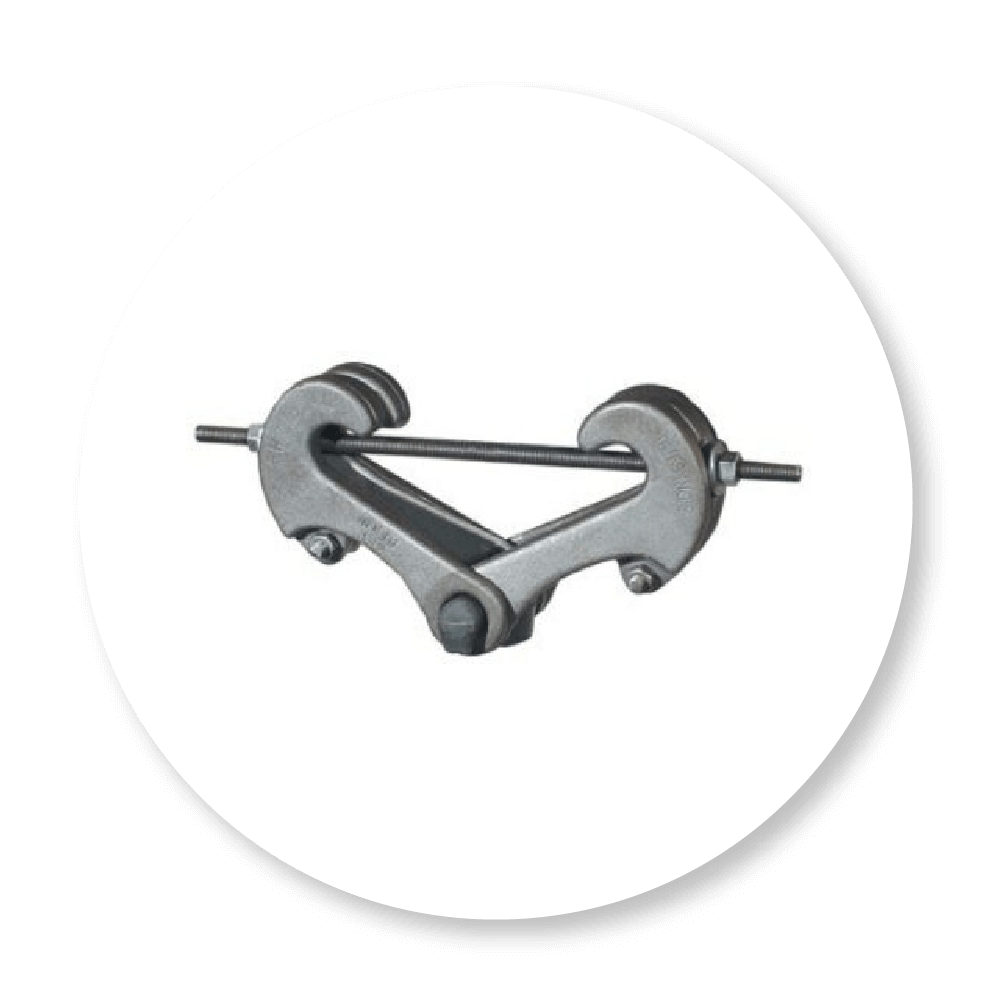

fig282

Universal Forged Steel Beam Clamps (fig. 228)

Max Rod Size: 5/8” – 1-1/2”

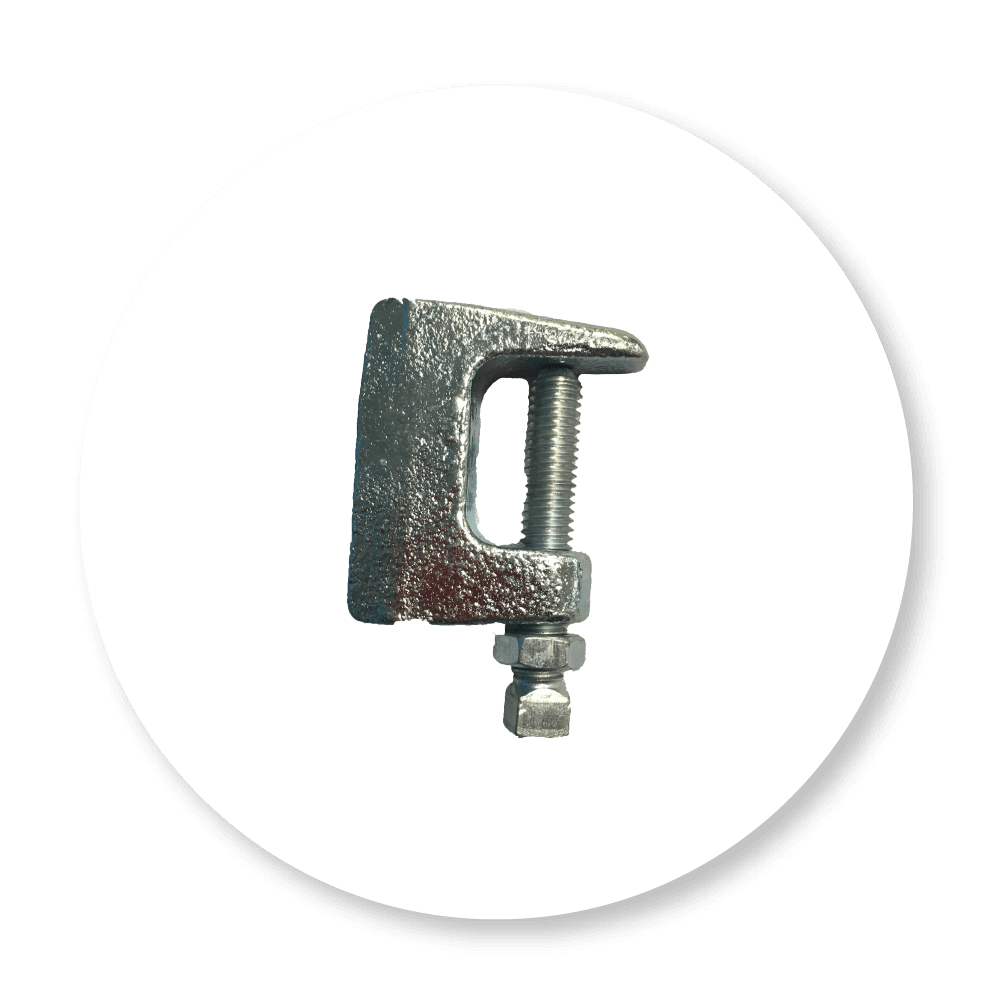

fig92

Standard Universal C-type Clamps (fig. 92)

Max Rod Size: 3/8” – 1/2”

Rod & Hanger Accessories

Rod and hanger accessories provide you with all the options needed to safely secure your pipes. APP's turnbuckles are used in piping systems to provide minor adjustments in the field, while the weldless eye nut and steel clevis both function as load bearing supports for the pipe. All of APP's rod and hanger accessories are fabricated in accordance with industry standards.

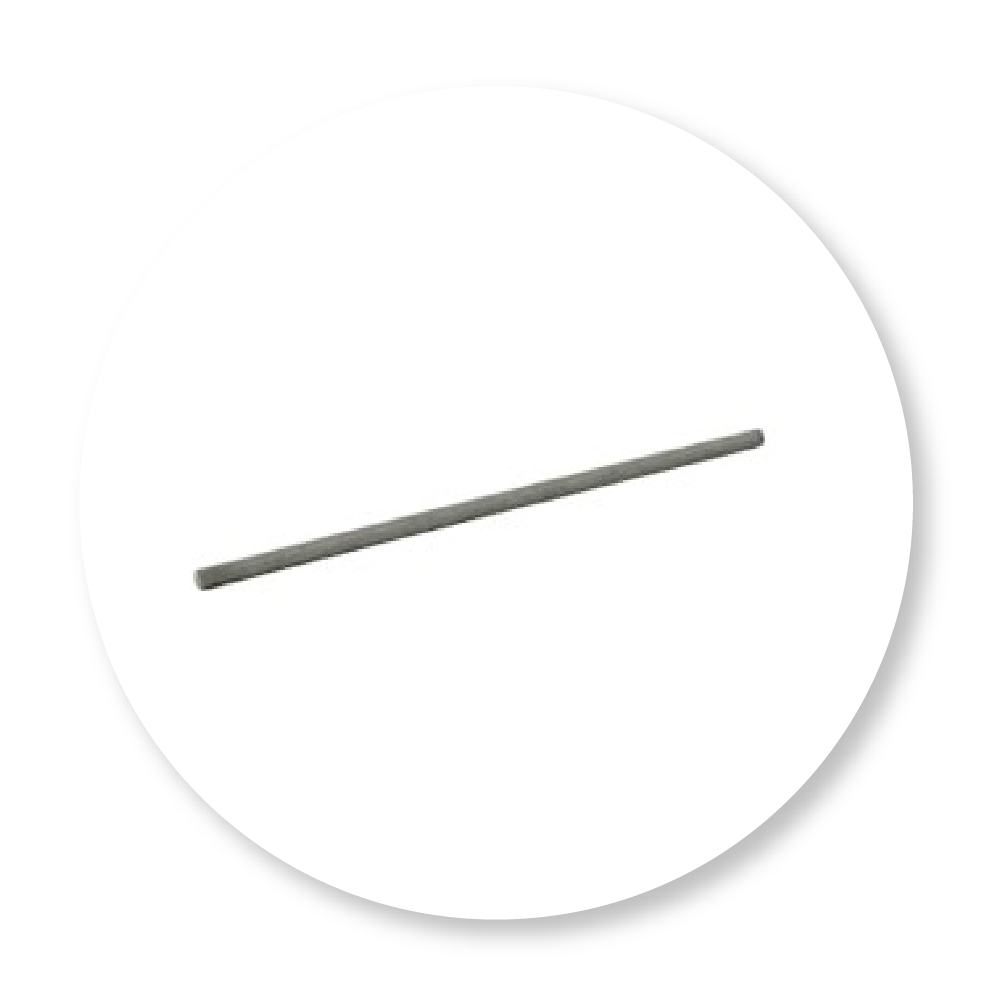

pipe-hangers-12

Continuous Threaded Rods (fig. 146)

Size Range: 1/4” – 1-1/2”

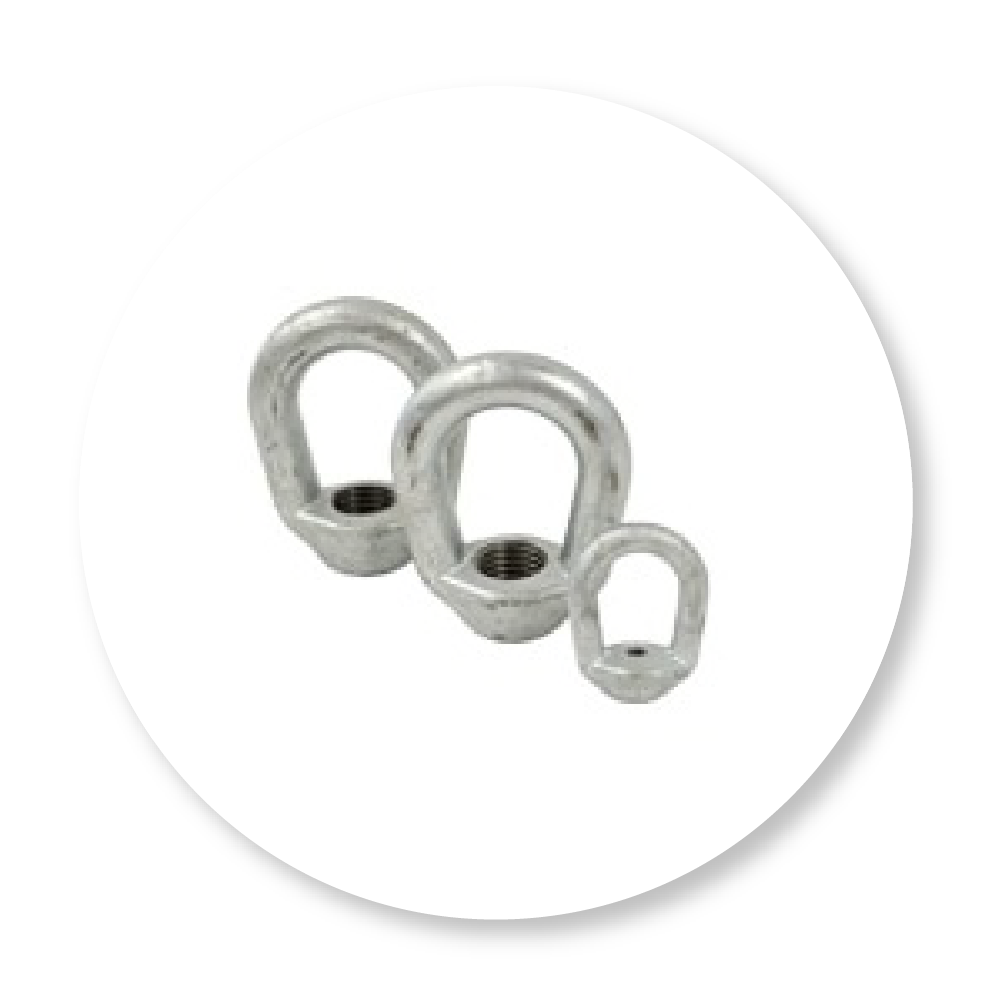

pipe-hangers-11

Weldless Eye Nuts (fig. 290)

Size Range: 3/8" - 2-1/2"

Product Drawing
pipe-hangers-10

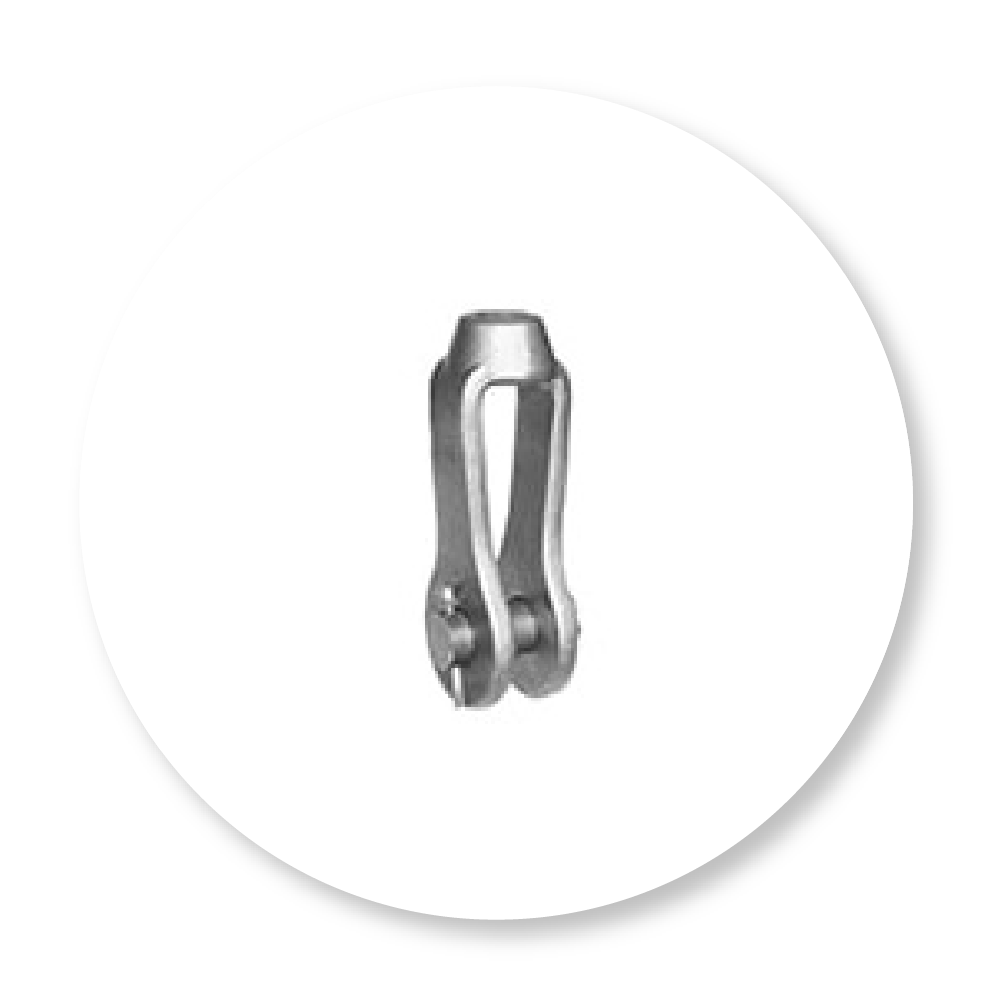

Forged Steel Clevises (fig. 299)

Size Range: 3/8” – 4”

pipe-hangers-13

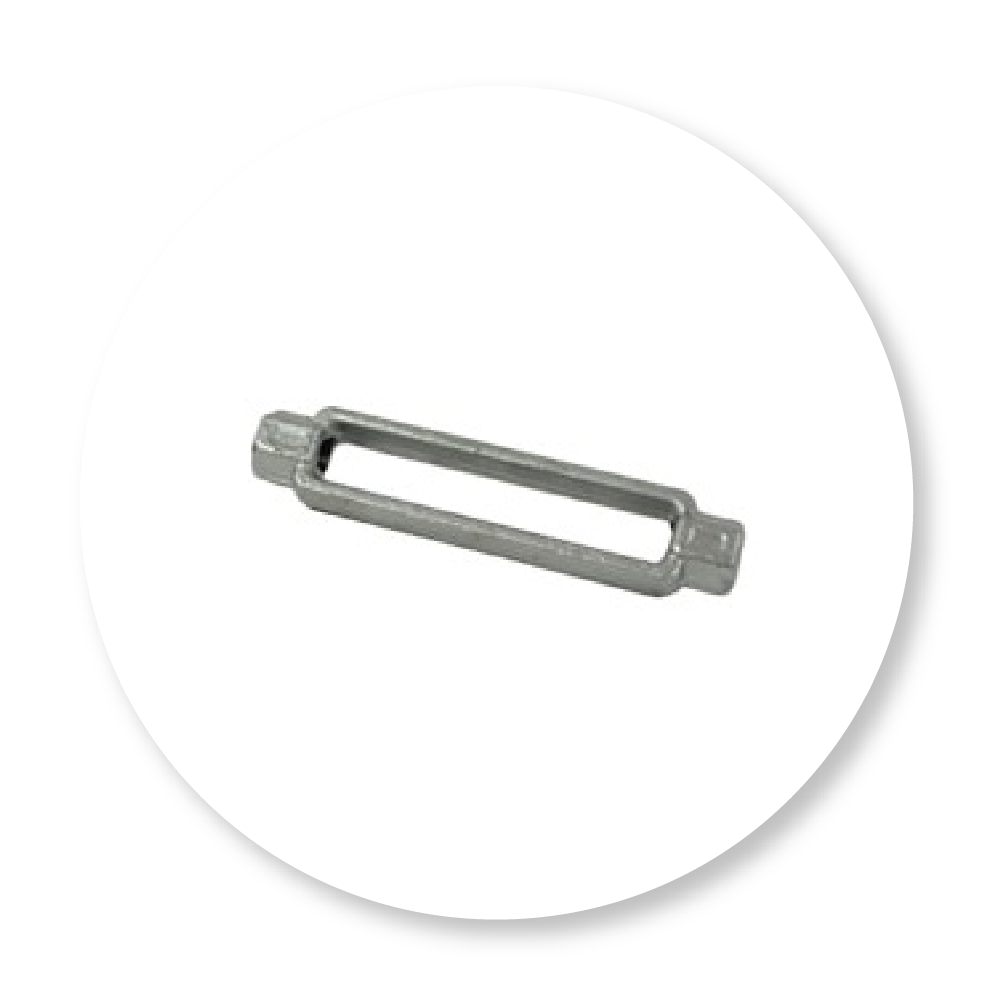

Turnbuckle (fig. 230)

Size Range: 3/8” – 2-1/2”

Product Drawing
pipe-hangers-08

Standard Hex Nuts

fig278

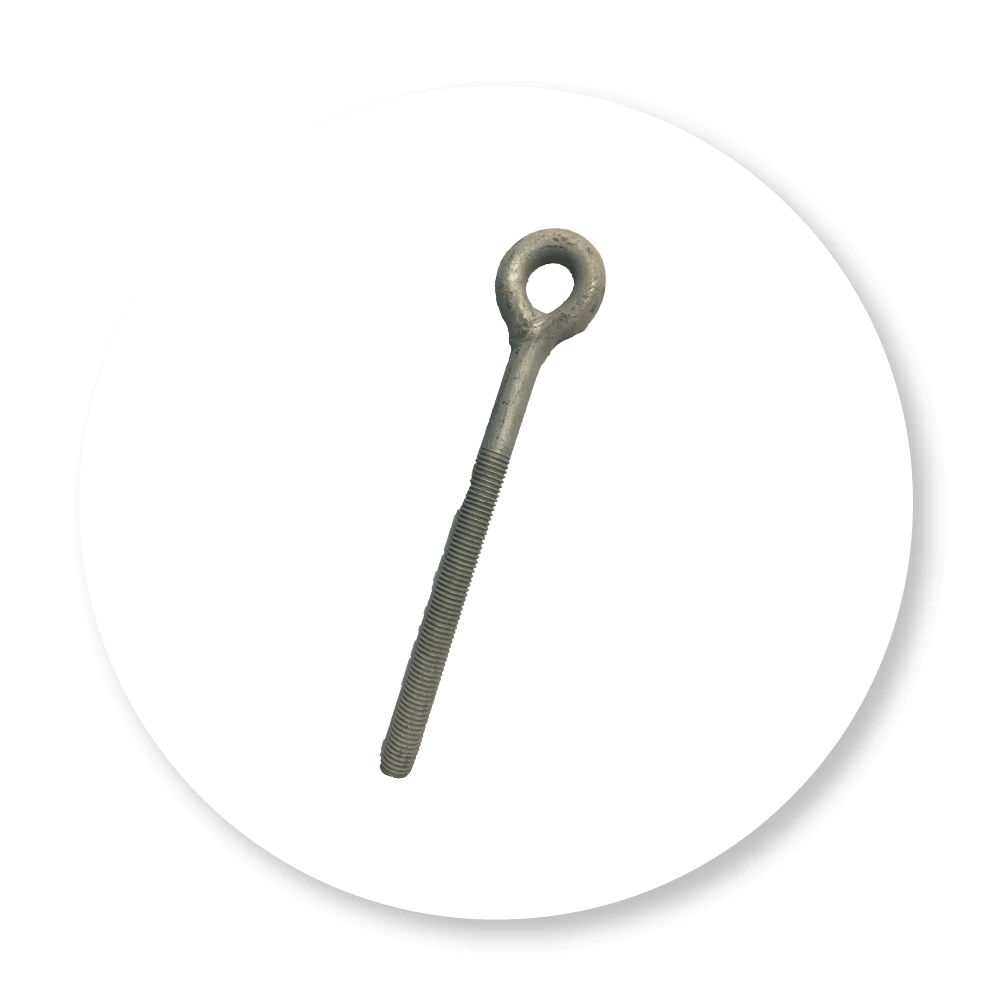

Welded Eye Rods (fig. 278)

Size Range: 3/8” – 2-1/2”

Pipe Attachments

Pipe attachments are used in combination with threaded rods and other hanger accessories in nearly all pipe hanger applications. APP’s steel pipe clamps and clevis come in multiple finishes including carbon steel, stainless steel and hot-dipped galvanized (HDG).

pipe-hangers-05

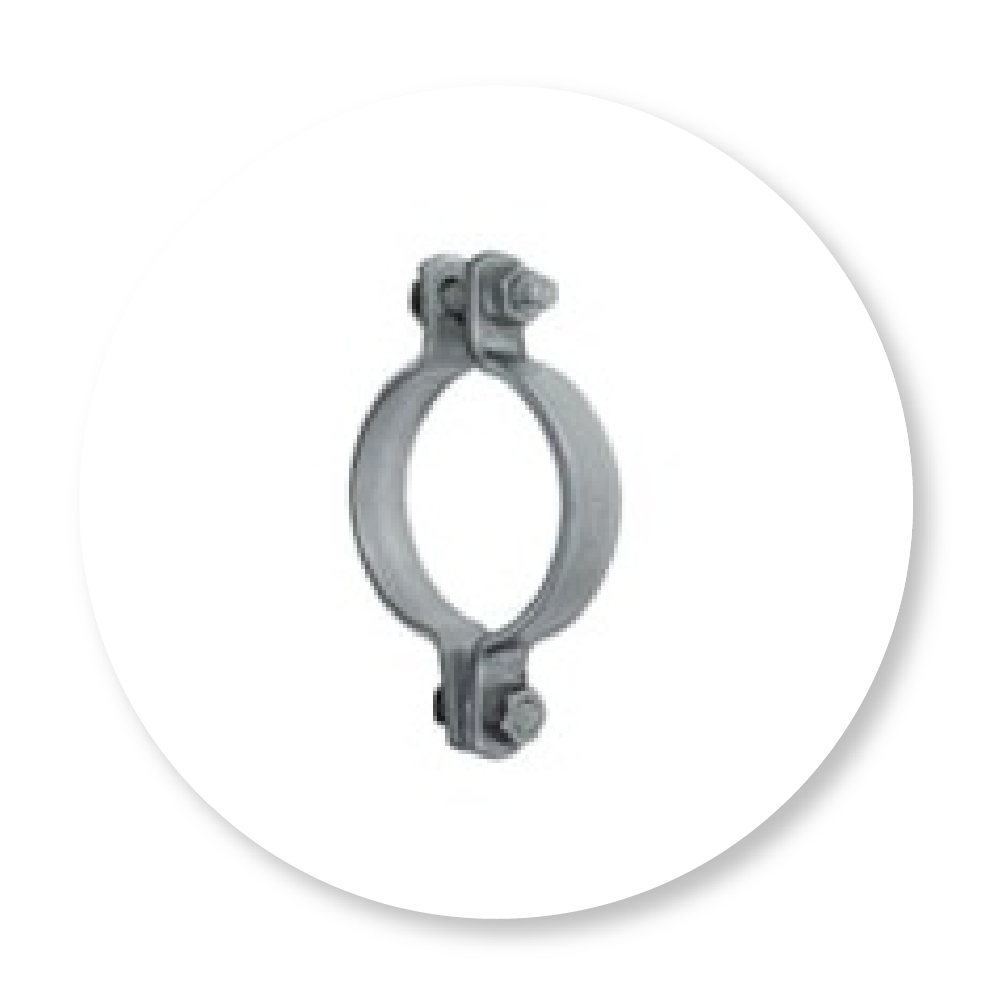

Medium Pipe Clamps (fig. 212)

Size Range: 1/2” – 30”

Product Drawing
pipe-hangers-04

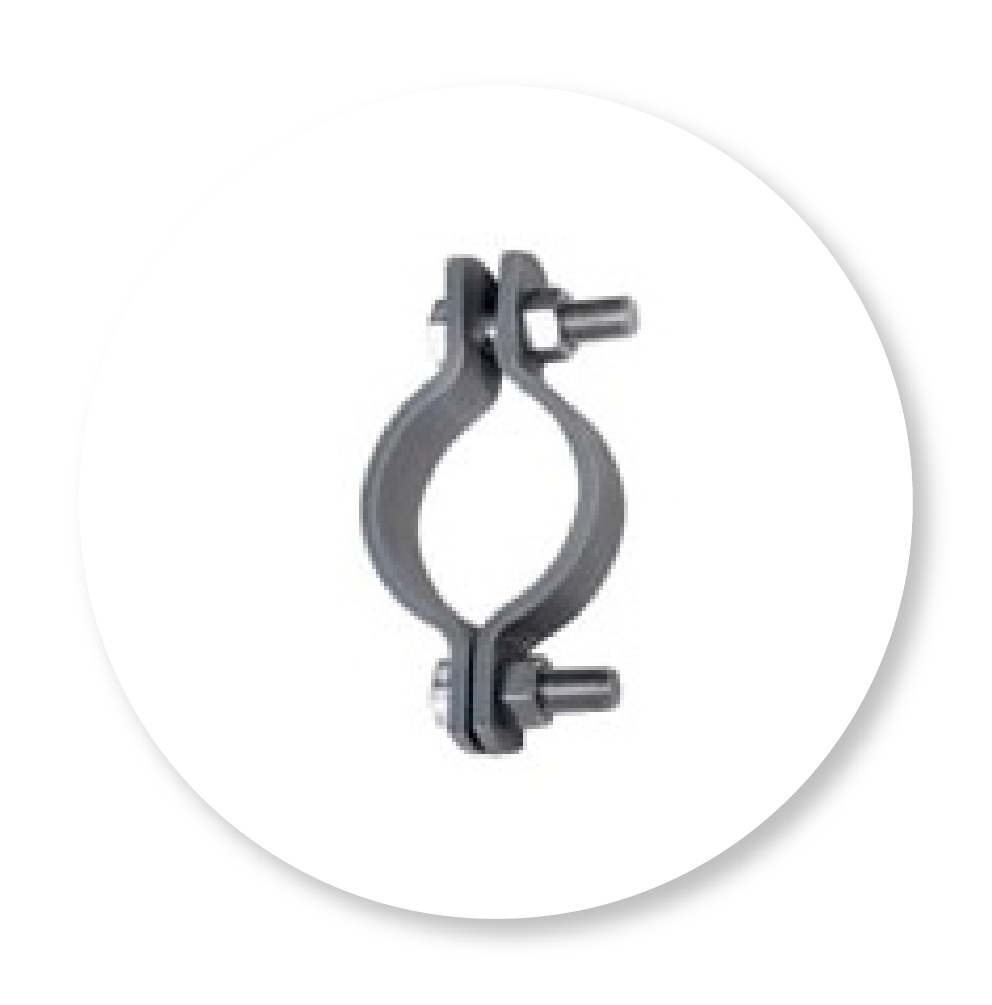

Heavy Pipe Clamps (fig. 216)

Size Range: 3” – 42”

pipe-hangers-03

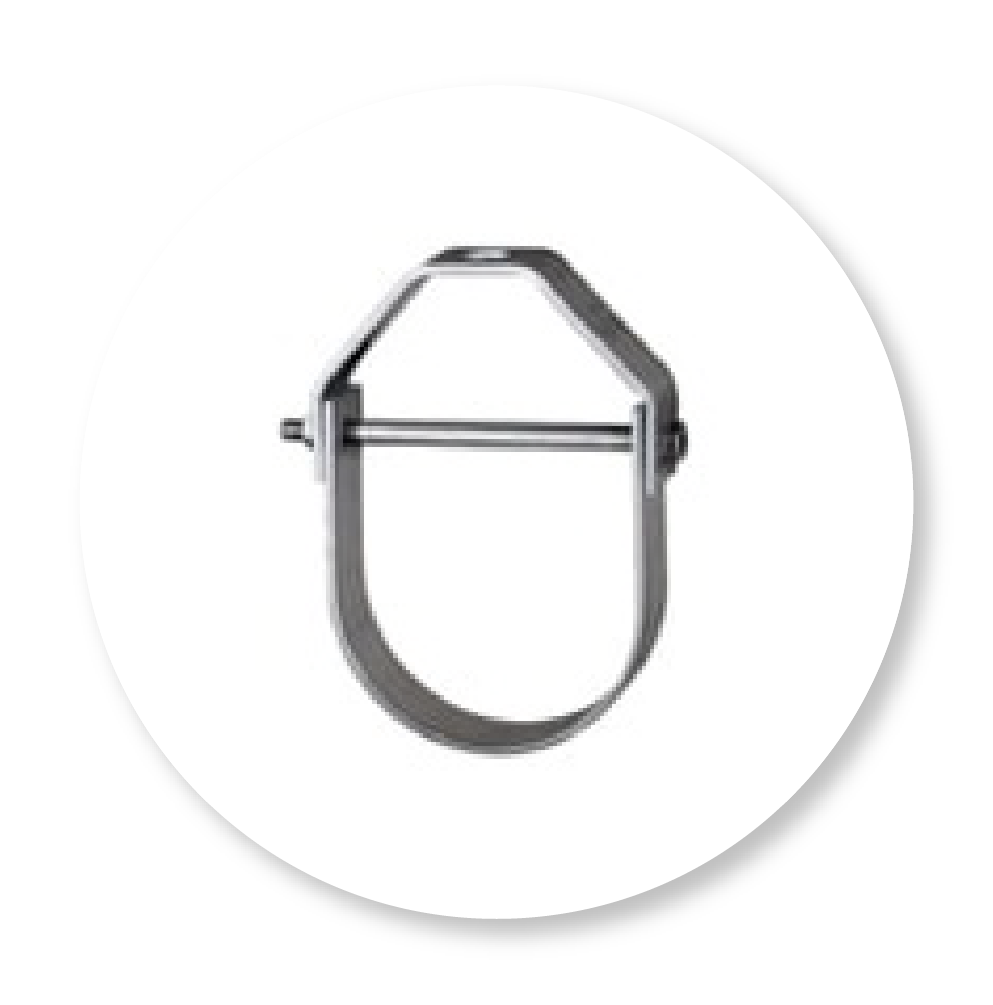

Adjustable Clevis Hangers (fig. 260)

Size Range: 1/2” – 30”

Product Drawing

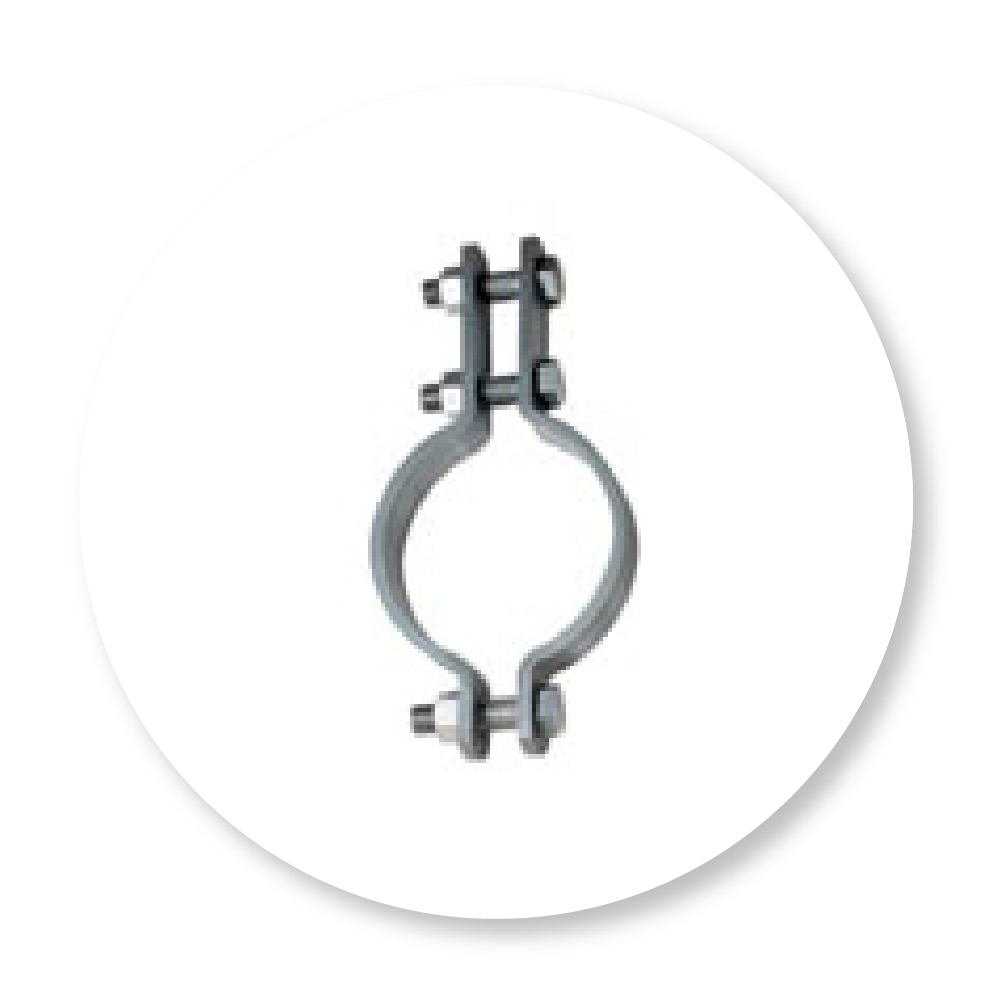

pipe-hangers-02

Double Bolt Pipe Clamps (fig. 295)

Size Range: 3/4” – 36”

Product Drawing
fig181

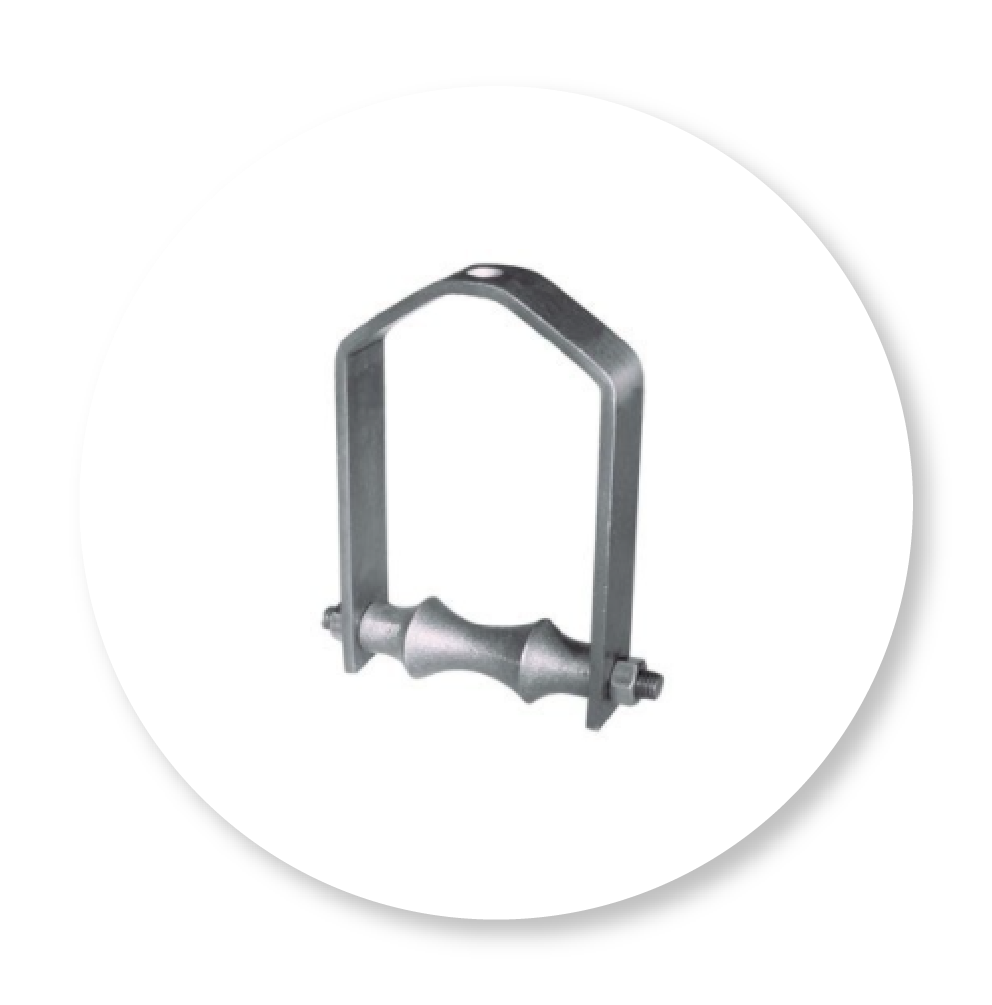

Adjustable Steel Yoke Pipe Rolls (fig. 181)
