TICO Clip Strips

Overview

TICO clip or clamp strips isolate vibration between pipe-work and hanger, the clamp strips consist of either a rubber bonded cork material or an extruded polymer. Our 3 main types have different features in operating temperatures to suit any working environment and are easy to cut and install.

CLICK HERE FOR MORE INFO

Clip Strip Options

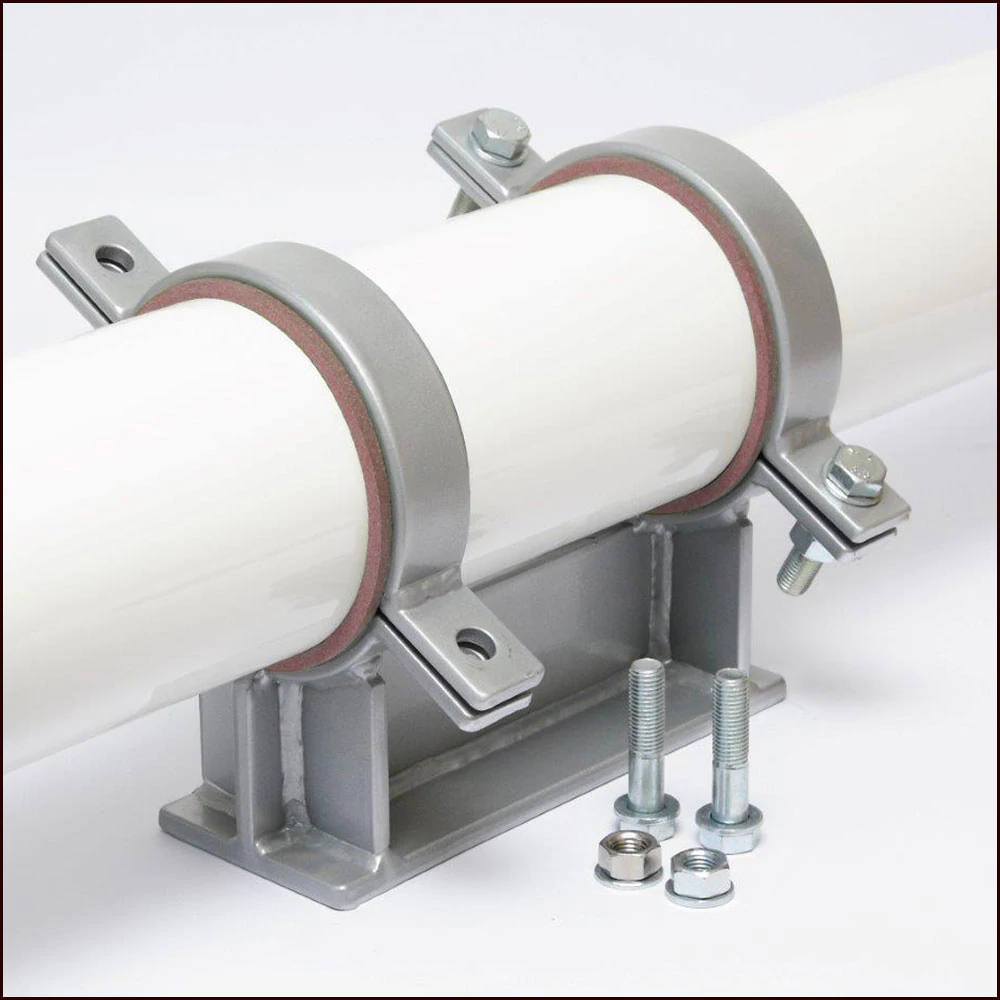

s-cl-clip-strip-1_1024x1024

TICO Clamp Strip S/CL

TICO S/CL clamp strip isolates vibration between pipe-work and hanger, this clamp strip is manufactured from our well known Tico S rubber bonded cork material and is red/brown in color.

Key Features:



  • Raised shoulder design for positive location

  • Sizes to suit most common strap widths

  • Quick, easy installation

  • Reduction and absorption of shock, noise and vibration

  • Pliable and easy to cut

  • Prevents electrolytic action between dissimilar metals

  • Continuous maximum working temperature 100°C

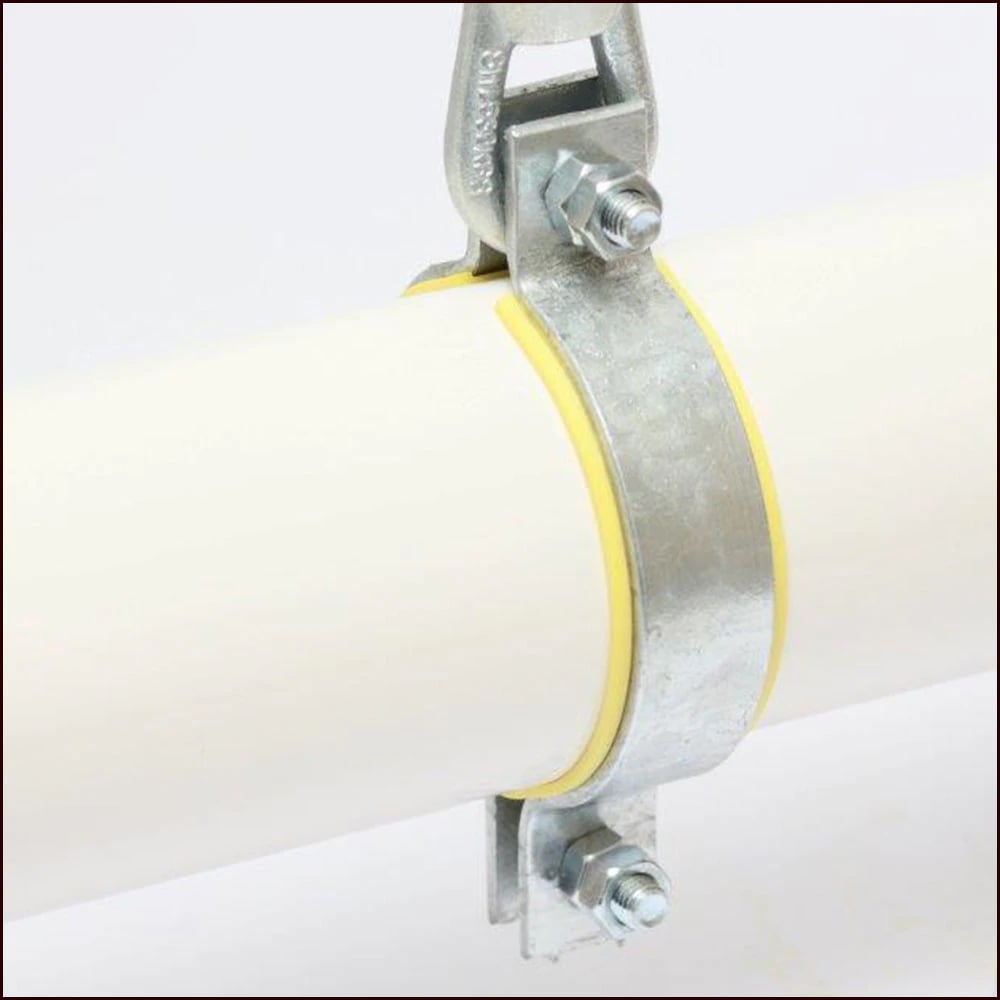

vht-clip-strip-1_1024x1024


TICO Clamp Strip VHT/CL

TICO VHT/CL fire retardant clamp strip isolates vibration between pipe-work and hanger, this clamp strip is an extruded polymer with a wide operating temperature range of -50°C to 300°C (-58°F to 572°F)

Key Features:

  • Raised shoulder design for positive location

  • Sizes to suit most common strap widths

  • Quick, easy installation

  • Reduction and absorption of shock, noise and vibration

  • Pliable and easy to cut

  • Prevents electrolytic action between dissimilar metals

  • Continuous maximum working temperature 300°C

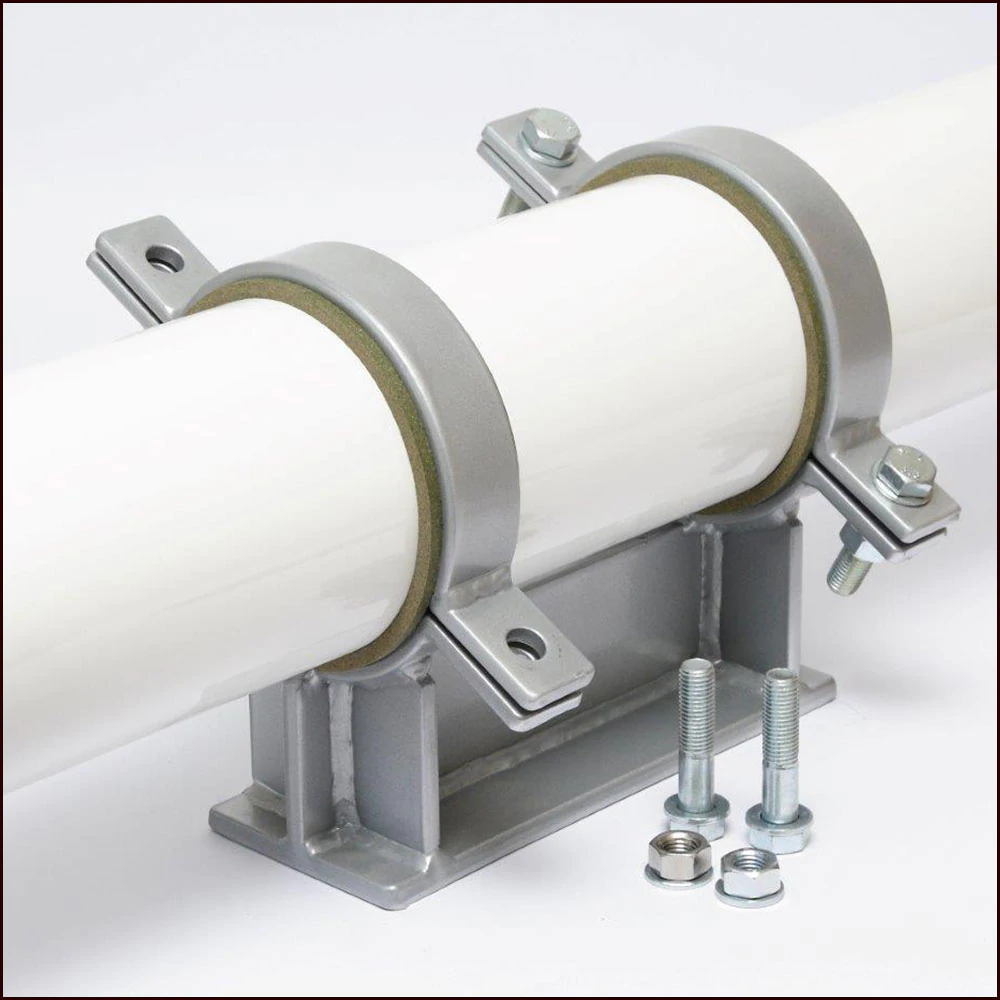

ht-cl-clip-strip-1_1024x1024

TICO Clamp Strip HT/CL

TICO HT/CL clamp strip isolates vibration between pipe-work and hanger, this clamp strip is a rubber bonded cork material which has been engineered to accommodate higher operating temperatures and is green in color.

Key Features:

  • Raised shoulder design for positive location

  • Sizes to suit most common strap widths

  • Quick, easy installation

  • Reduction and absorption of shock, noise and vibration

  • Pliable and easy to cut

  • Prevents electrolytic action between dissimilar metals

  • Continuous maximum working temperature 150°C

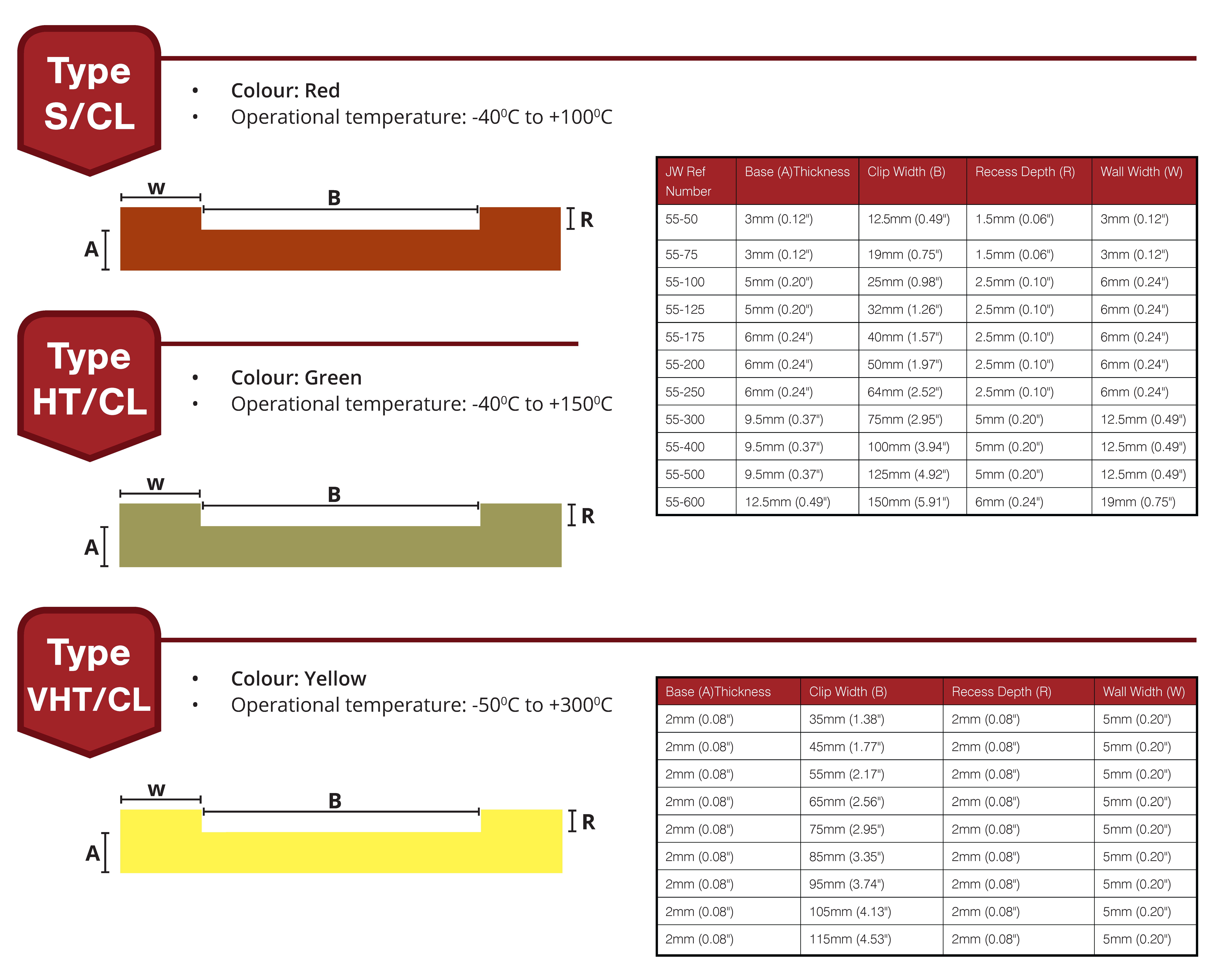

TICO Clip Strip Standard Specs & Sizes



TICO Clip Strip Info
