Our lined Hold Down Straps are the perfect medium restraint solution. They are designed to protect the coating of uninsulated carbon steel pipes while keeping the pipe securely in place. Options include half threaded or full threaded, along with an array of metals and finished. Liner options include but are not limited to: VibraTek, Fabreeka®, Neoprene, and sodium etched PTFE.

Benefits include:

  • Eliminates metal-to-metal contact, preventing corrosion, and extending the life of the piping system
  • Liner is molded directly into the strap inner diameter to ensure high quality performance
  • Since the liner is not bonded but molded, there is no concern for delamination
  • Our liner contains UV inhibitors to protect against UV attack

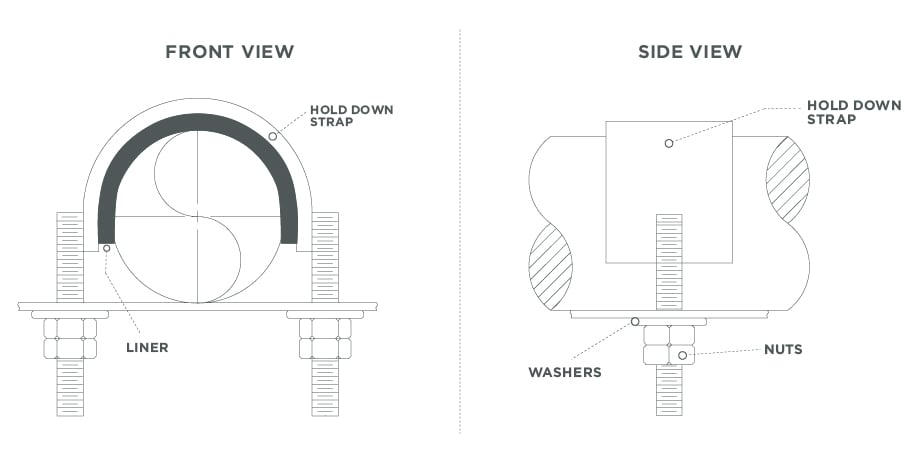

IMG-HoldDownStrap



Contact Us
Urethane-lined Hold Down Straps Specifications
Composition Hot-dipped galvanized carbon steel
Liner VibraTek, Neoprene, PTFE, Fabreeka®
Temperature Range Dependent on liner
Installation Field install
Required Accessories None
Custom manufacturing Other sizes and special configurations available upon request. Metal can be galvanized, Xylan coated or Teflon coated.
Standard Sizes
Pipe Size Strap Thickness Urethane Thickness
1” to 8” ¼” ¼”
10” to 14” ⅜” ¼”
16” to 24” ½” ¼”
Pricing Request Pricing for this product
