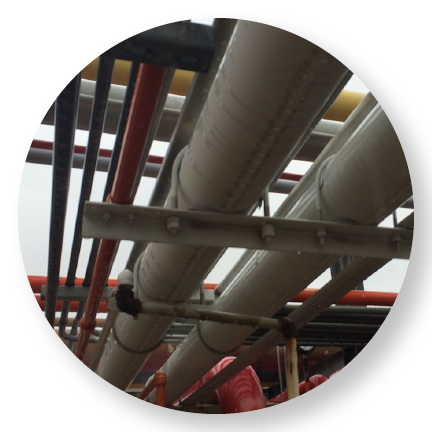

A u-bolt is a curved bolt that features threads on each end. U-Bolts act as the simplest but also the most widely used pipe guiding restraint. Custom sizes are readily available upon request including variable: rod thickness, width, length, and thread length.

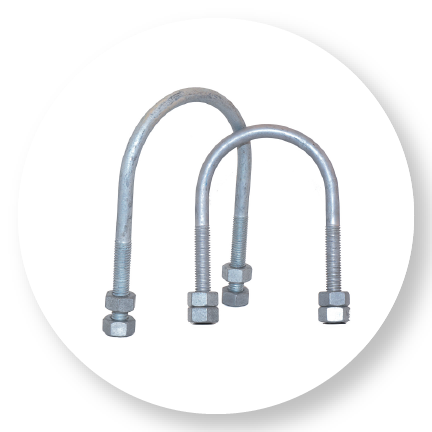

Standard u-bolts are bent to form a U that fits around a pipe or tube. It is threaded on both ends to allow attachment to a beam or structure.

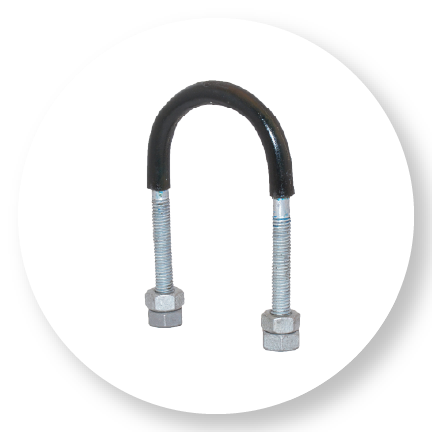

ProTek u-bolts restrain the pipe while shielding it from metal-to-metal contact and rough abrasion from pipe movement.
Carbon Steel or Stainless Steel
1,500 lbs. per square inch (ASTM D412)
-67°F to 230°F
Four heavy hex nuts
ProTek Rod, ProTek Package (ProTek Wear Pad and ProTek Flat Plate)

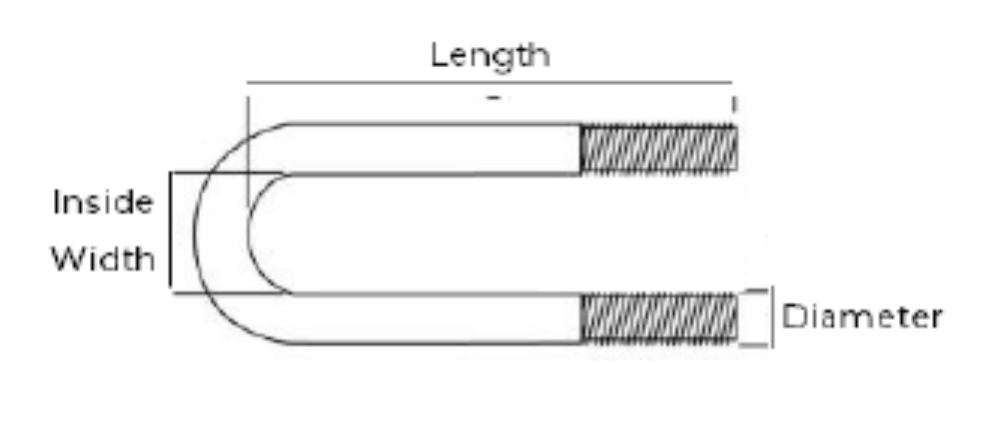

| NPS | Diameter | Inside Width | Length |
| 1/2" | 1/4" | 15/16" | 3-5/15" |
| 3/4" | 1/4" | 1-1/18" | 3-7-16" |
| 1" | 1/4" | 1-3/8" | 3-1/2" |
| 1-1/4" | 3/8" | 1-3/4" | 3-3/4" |
| 1-1/2" | 3/8" | 2" | 4" |
| 2" | 3/8" | 2-7/16" | 4-9/16" |
| 2-1/2" | 1/2" | 3" | 5-3/16" |
| 3" | 1/2" | 3-5/8" | 5-3/4" |
| 3-1/2" | 1/2" | 4" | 6-3/8" |
| 4" | 1/2" | 4-5/8" | 6-3/4" |
| 5" | 1/2" | 5-5/8" | 8" |
| 6" | 5/8" | 6-3/4" | 9-7/16" |
| 8" | 5/8" | 6-3/4" | 11-7/16" |
| 10" | 3/4" | 10-7/8" | 13-3/4" |
| 12" | 7/8" | 12-7/8" | 16" |
| 14" | 7/8" | 14-1/4" | 17-1/4" |
| 16" | 7/8" | 16-1/4" | 19-1/4" |
| 18" | 1" | 18-1/4" | 21-5/8" |
| 20" | 1" | 18-1/4" | 24-5/8" |
| 22" | 1" | 22-1/4" | 25-5/8" |
| 24" | 1" | 24-1/4" | 27-5/8" |
| 30" | 1" | 30-1/4" | 35" |
| 36" | 1" | 36-1/4" | 40-1/4" |
