ProTek Flat Plates

Key Features

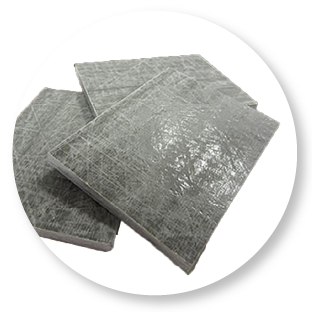

flat plate product

Reduce Friction with ProTek Flat Plates

APP’s ProTek Flat Plate is made from the same corrosion resistant composite material as our ProTek Wear Pads. The flat plate is best suited for use on flat surfaces and it can be used in multiple applications, such as a non-metallic bearing surface for corrosion prone areas. If a low coefficient of friction is needed, it can be mated to a PTFE sheet and act as a slide plate. In addition to being corrosion resistant, the flat plate only takes minutes to be installed.

Protects structure or surface from wear caused by pipe movement or other forces.
Low cost of installation: no welding, hot work permits or highly skilled personnel required.
Custom sizes available.
Can be used as a shim to correct for height inconsistencies.

Flat Plat Specifications

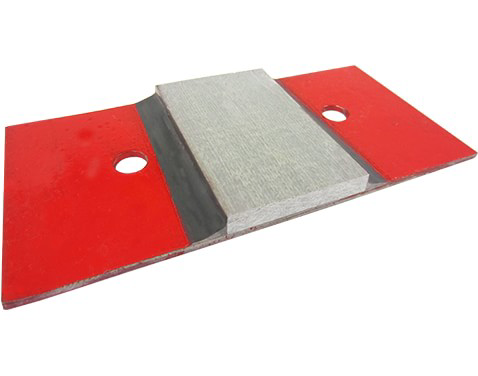

Simple Facts With Optional Tabs Behind

Composition

APP-VEFR

Maximum Compressive Strength

53,000 lbs. per ASTM E8

Temperature Range

-320°F to +400°F

Coefficient of Friction to Steel

0.2

Installation

EX-100 Epoxy System

Potential Accessories

  • Epoxy (6 oz. cartridge)
  • Static mixing nozzle
  • Epoxy applicator gun

Custom Manufacturing

Available in custom sizes (maximum of 3’ x 10’) and thicknesses (⅛”, ¼”, and ⅜”). Setup fee may apply.

Standard Sizes

Pipe Size Width Length Thickness
½” & ¾” ½” 5” ⅛”
1” ¾” 5” ⅛”
2” 1” 5” ⅛”
2 ½” 1 ½” 5” ⅛”
3” 2” 5” ⅛”
4” 3” 5” ⅛”
6” 5” 5” ⅛”
8” 7” 5” ⅛”
10” 9” 5” ⅛”
12” 11” 5” ⅛”
14” 13” 5” ⅛”
16” 15” 5” ⅛”
18” 17” 5” ⅛”
20” 19” 5” ⅛”
22” 21” 5” ⅛”
24” 23” 5” ⅛”

Metal Composition

Hot-dipped galvanized carbon steel
