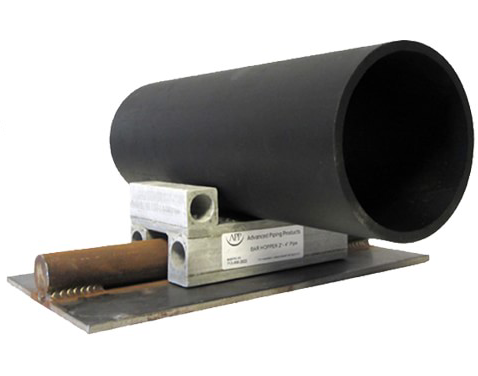

When round bar has been welded to an I-beam, APP’s Bar Hoppers allow APP ProTek Wear Pads to be used without removing the round bar. Our composite material bar hoppers are installed over the round bar so that the pipe rests on the top plate of the bar hopper. This design eliminates round bar point loading.
Construction & Design
Corrosion resistant composite technology eliminates metal-to-metal contact, which stops and eliminates further damages caused by point loading on round bars.
Despite its lightweight and highly portable design, the Bar Hopper remains securely in place during expansion and contraction of piping system.
Strength
High strength composite material can handle loads of 53,000 lbs. per ASTM E8. (same as ProTek Composite Wear Pads)
Bar Hopper Specifications | |
---|---|
Composition | APP-VEFR |
Maximum Compressive Strength | 53,000 lbs. per ASTM E8 |
Temperature Range | -60°F to +400°F |
Installation | Field install |
Required accessories | None |
Custom manufacturing | Will fabricate to specific dimensions |
Benefits |
|
Standard Sizes | Available upon request |
Pricing | Request Pricing for this product |
